WebLogic Application Deployment - AdminConsole

Deploy An Application through WebLogic Admin Console:

 1. Prepare deployment file with the following extension ( JAR, WAR,EAR,MAR ) JAR : Java Archive File WAR : Web Application Archive File EAR :Enterprise Application Archive File MAR : Metadata Application Archive File
 2. Copy the file that planning to deploy into the server.
 3. Plan where you want to deploy ( Application Server ) .

Note : Servers can be converted from Development to production and production to development.
 4. Make sure All servers up and running .

 Case1 : Deploy application in Managed severs present in one cluster .
 Case 2 : Deploy application in one of the Managed server that present in two clusters .
 Case 3 : Deploy application in all Managed servers that are in different clusters .



  Case 1 : Deploy application in Managed severs that are present in one cluster .
1. Managed Servers in selected cluster are up and Runnung.

2. Click on Deployment

 3. Click on Lock and Edit to enable the new button.

 4. Click on Install : Install Application Assistant will display . select the application you are trying to install than Click Next.



 5. Select the target to install the application



 6. Type the name of the application . click finish to complete .

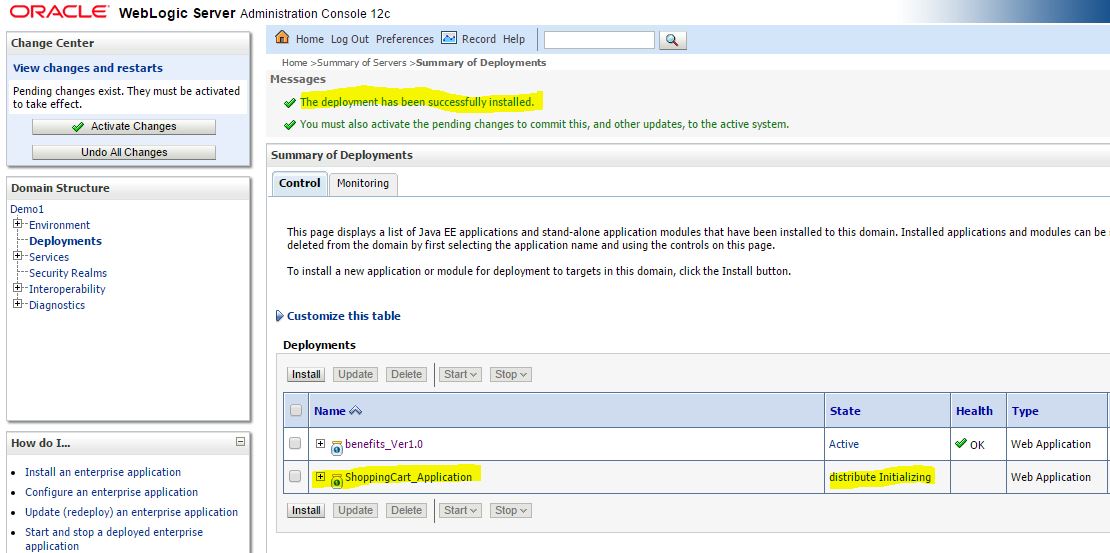

 7. Click activate the changes .



 8. Choose the deployed application click on start > Choose Servicing All Request. Verify Status changed to Active .


 9. Testing the Application Applications are up and running :


10. Verify the application directory is created in the Managed server stage directory :

 C:\WEBLOGICTRAING\wlsDomains\Demo1\servers\Demo1_MS1\stage>ls -ltr total 0
drw-rw-rw- 2 mahi 0 0 2015-05-27 23:21 benefits_Ver1.0
drw-rw-rw- 2 mahi 0 0 2015-05-30 15:50 ShoppingCart_Application C:\WEBLOGICTRAING\wlsDomains\Demo1\servers\Demo2_MS3\stage>ls -ltr total 0
drw-rw-rw- 2 mahi 0 0 2015-05-27 23:21 benefits_Ver1.0
drw-rw-rw- 2 mahi 0 0 2015-05-30 15:50 ShoppingCart_Application
